The goal of Transitional Geometries was to design a three-dimensional tiling system, and then construct an efficient fabrication process that would allow ease of mass production. My tiles were inspired by the curvy patterns of instant ramen noodles, which also have similarities to the microscopic form of cloth weavings.
I chose concrete as the main material because it gives a sense of solidity and weight. When concrete is shaped into undulating patterns, it almost feels uncanny because the material and the shape have seemingly contrasting spatial properties. My tile pattern deconstructs a ramen noodle’s underlying geometric pattern into a rational 2D form, then extrapolated into 3D.

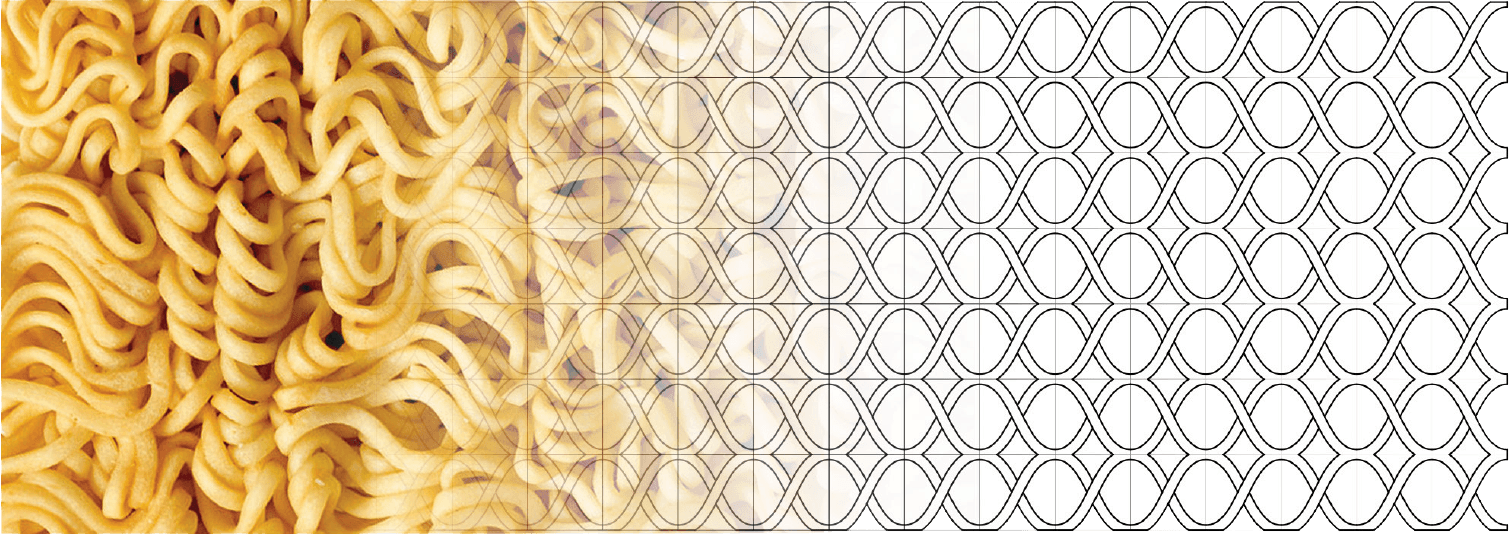

Deconstructing the geometric underlay of instant ramen noodles

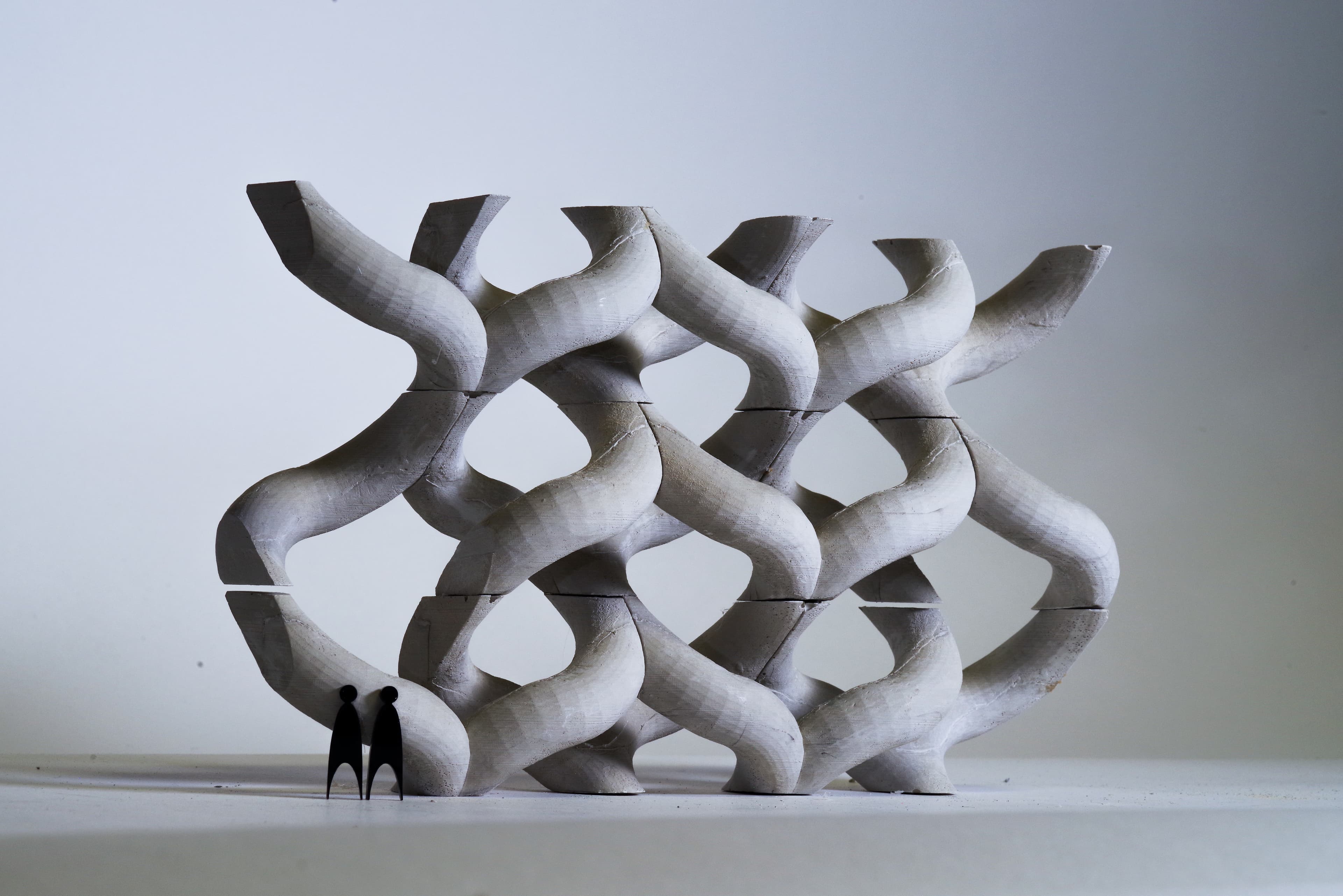

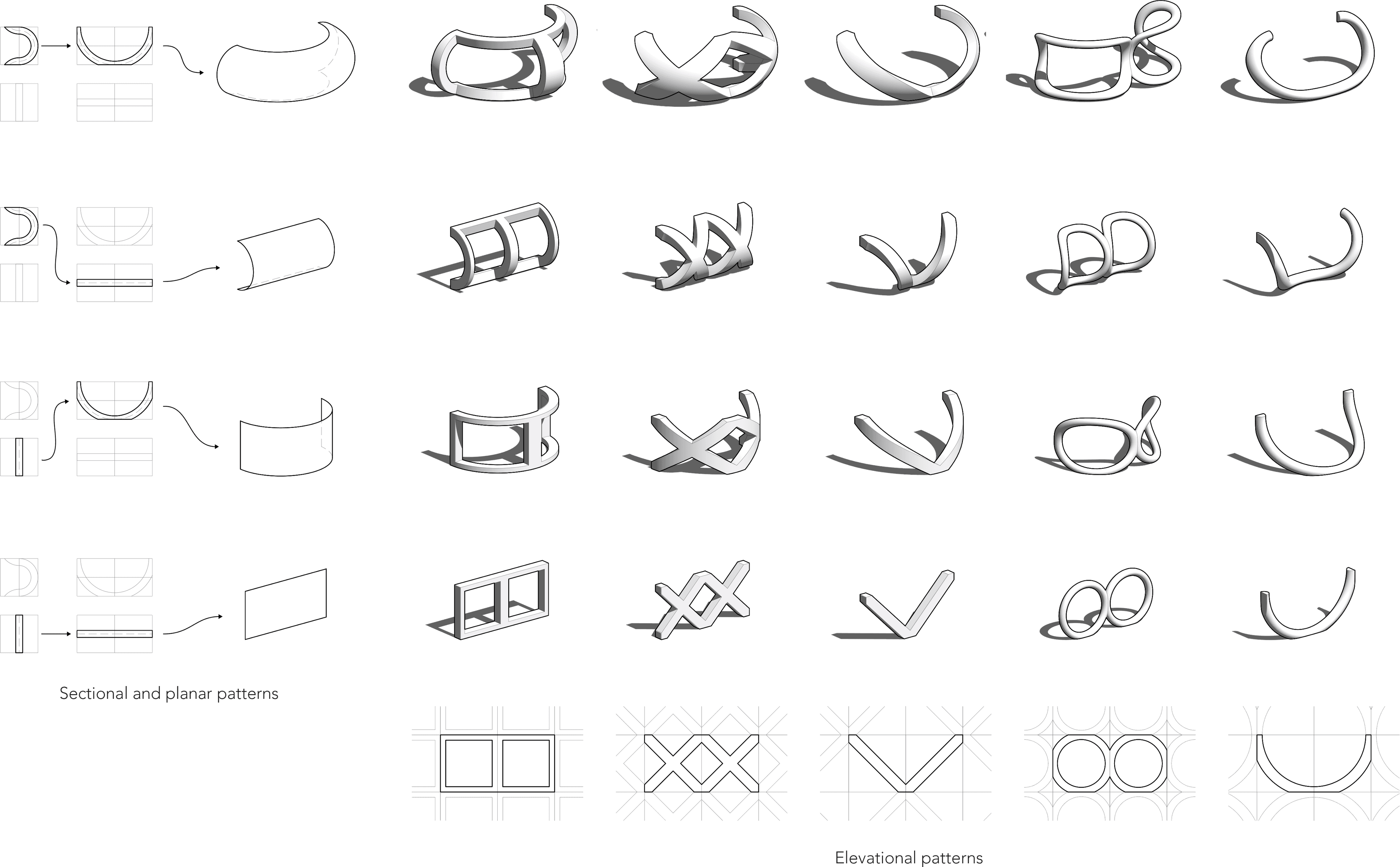

Design studies with various formal combinations

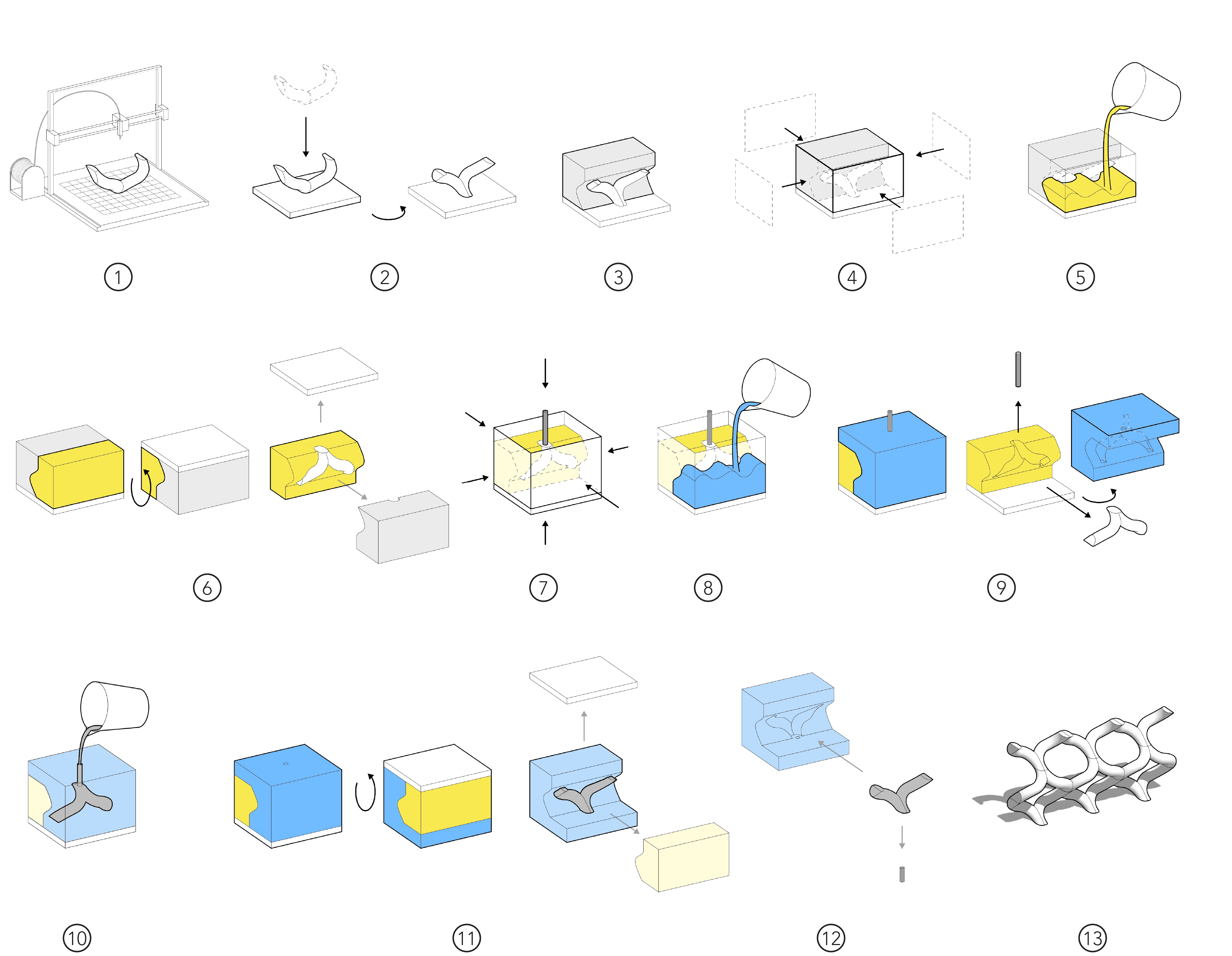

Two-part mold fabrication process

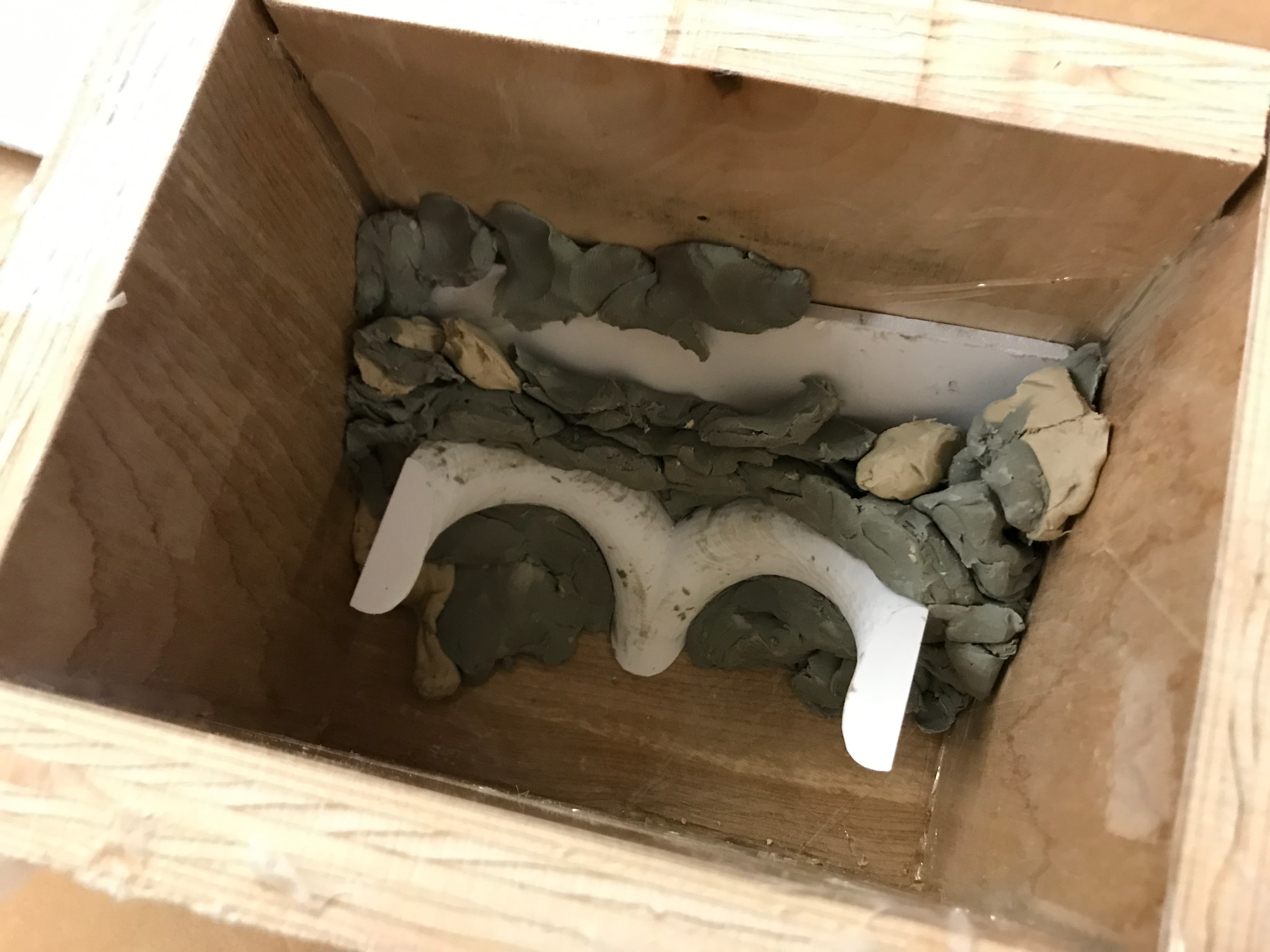

Assembling the wooden container for
the first half of the silicone mold

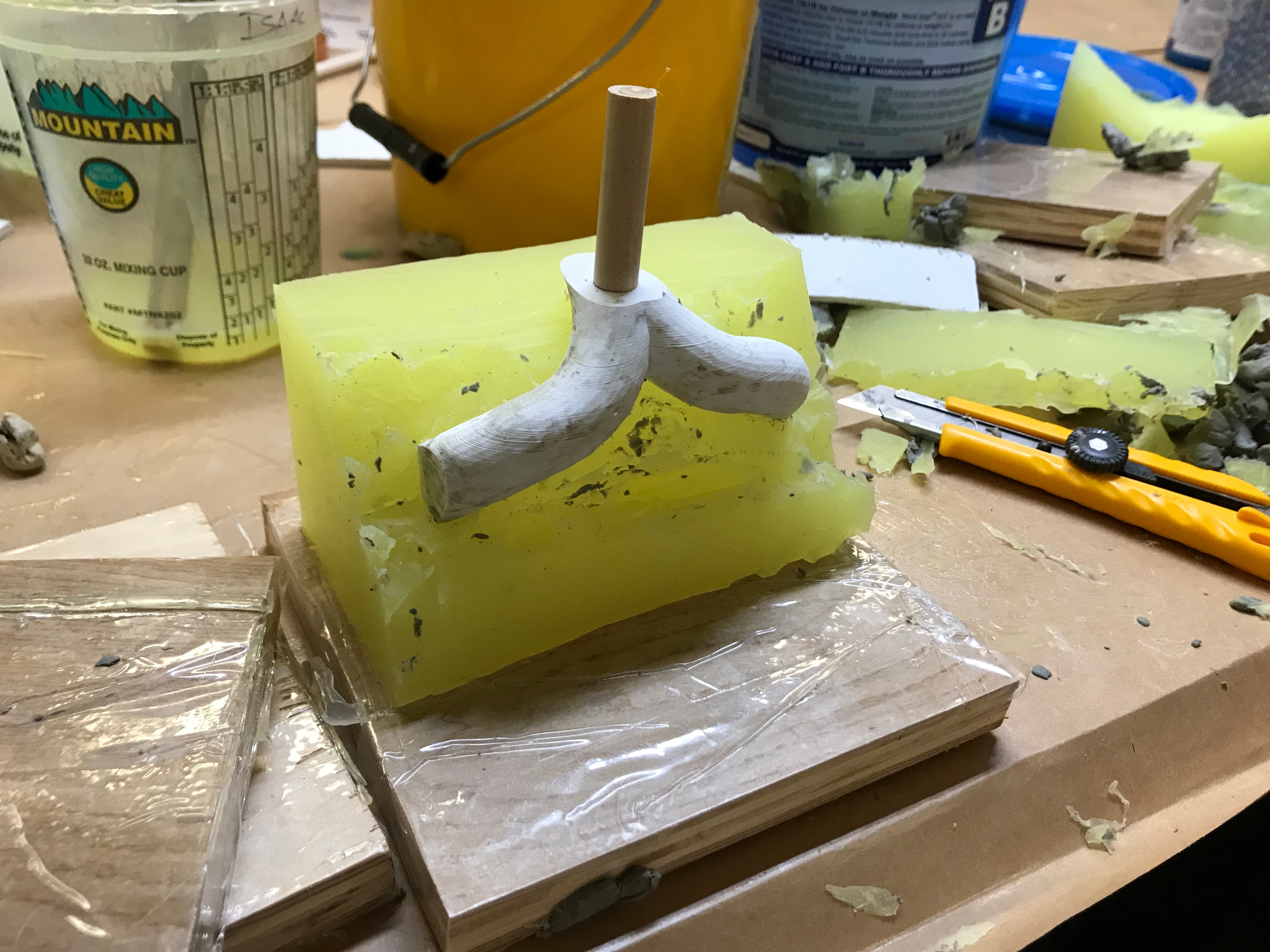

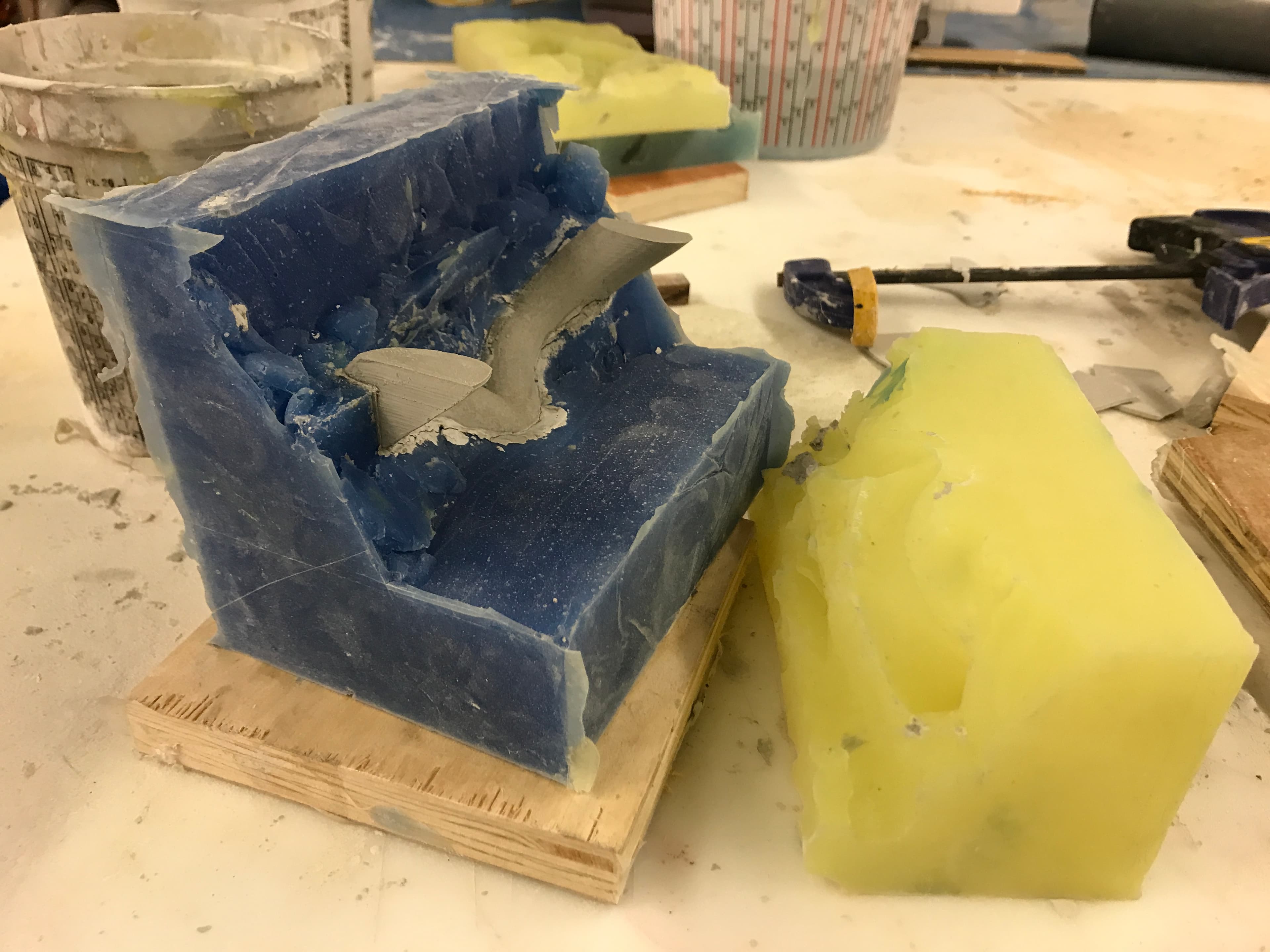

Preparing the second half of
the silicone mold
Concrete micture is poured into the
the void of the two part mold

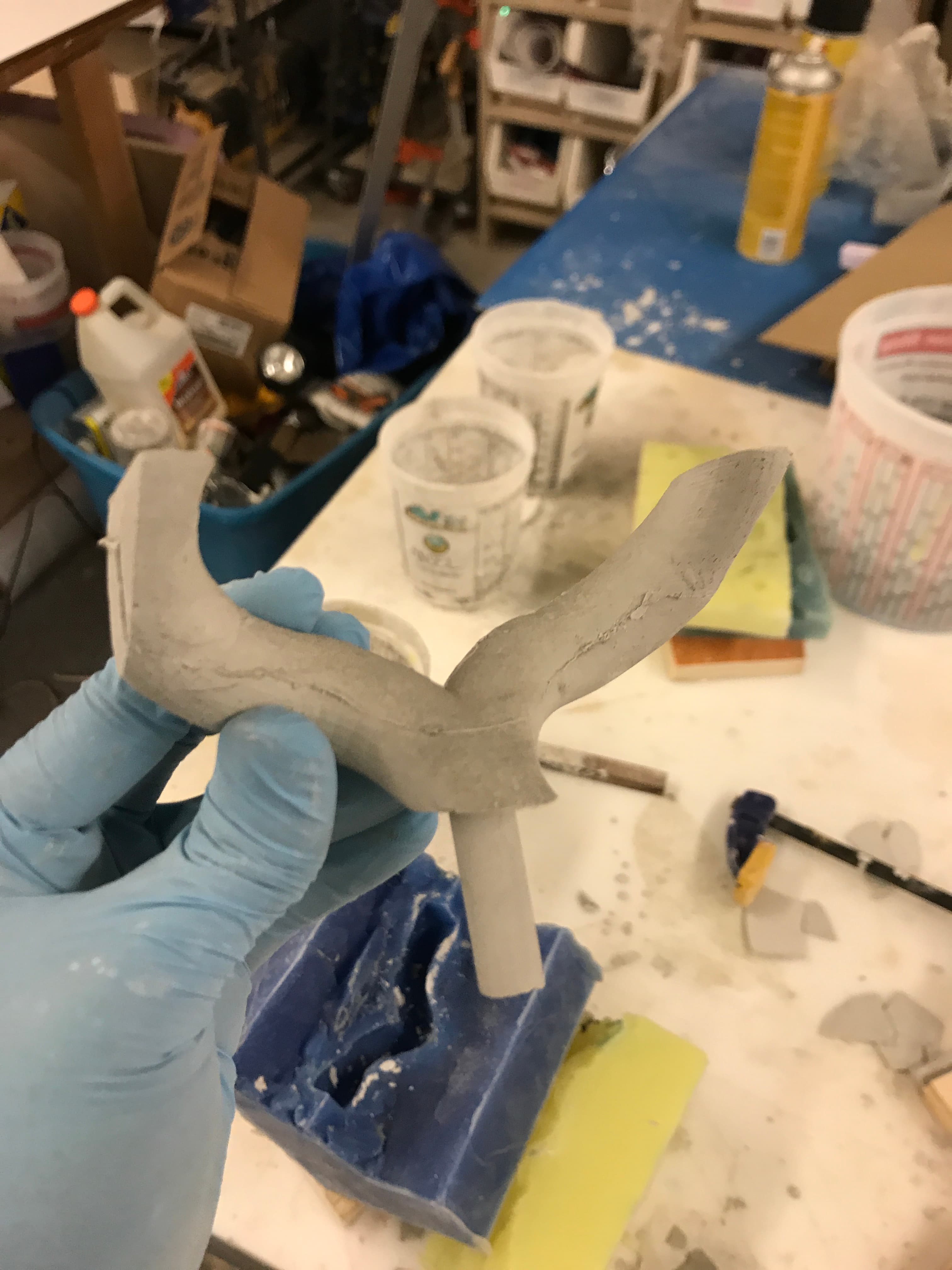

Tiles are extracted and treated
for a smooth finish

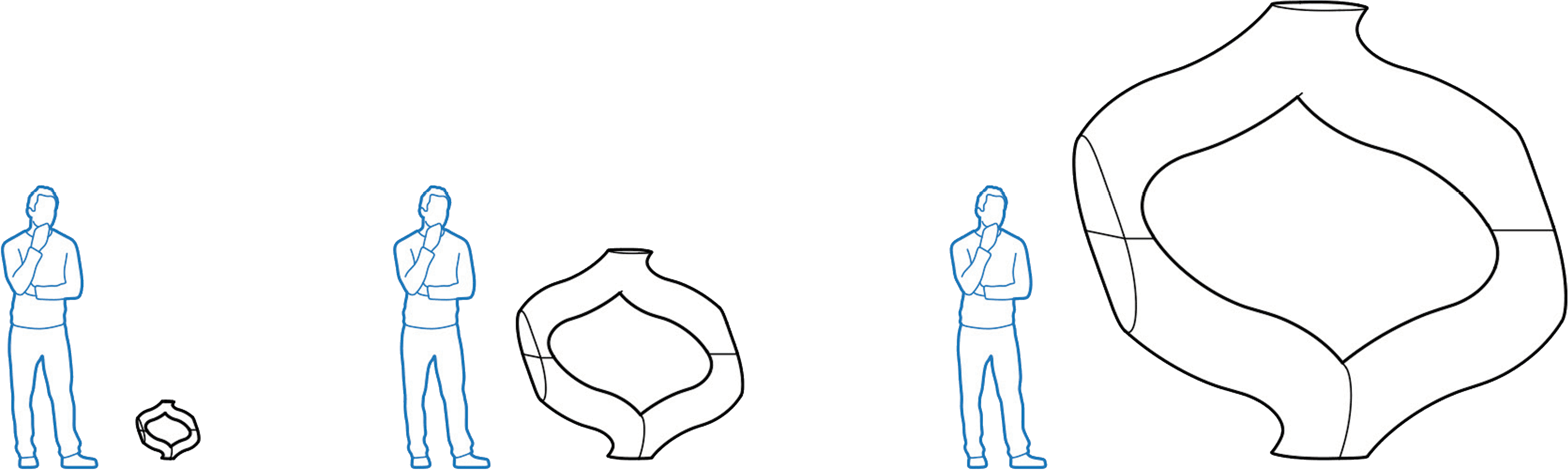

The undulating form is designed to be adaptable when fabricated at various scales

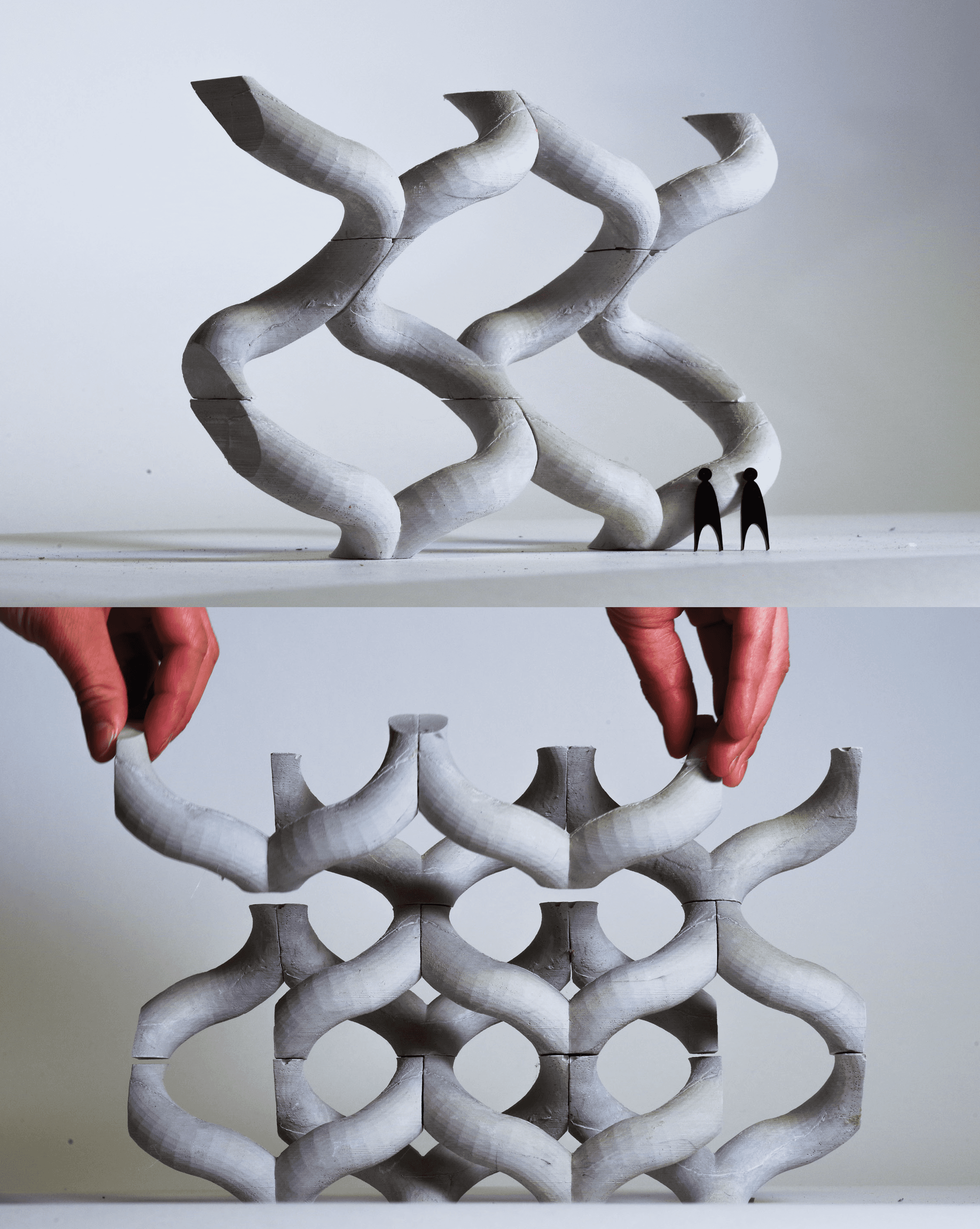

Small scale
Medium scale
Large scale
